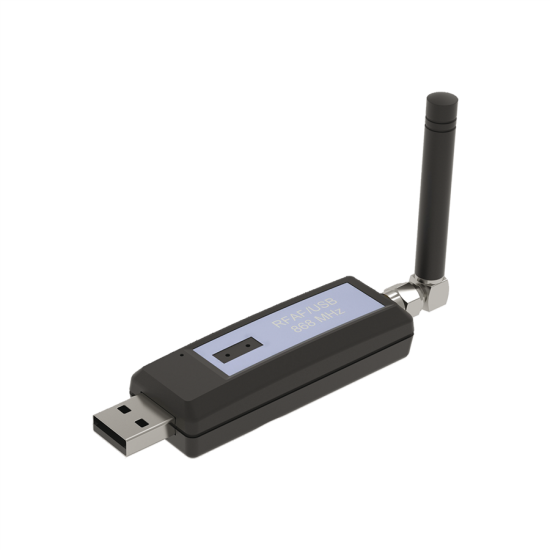

RFAF/USB | Service key

• The RFAF / USB service key (in cooperation with the RF_analyzer software) is intended for iNELS RF Control system partners and is used to:

  • the setting of the signal repeater (amplifier) via iNELS RF Control elements marked as RFIO2. This option allows you to communicate over a longer distance (in the order of 50m) through the existing iNELS RF Control elements in the installation (thus eliminating the use of the RFRP-20 repeater.
  • playback of firmware in iNELS RF Control elements (marked RFIO2), in the case of new firmware versions improving the functionality of elements on which we are constantly working.
  • The RF communication network analyzer reliably analyzes the communication between the driver (where you plan to place it) and the element in the installation. It shows the signal strength/quality as well as possible frequencies that can interfere with communication.i.
  • You can find the SW RF analyzer at inels.com/partners in the SW / FW RF Control section

Technical parameters

• Power consumption: max. 1W
• Interface: USB 1.1 and higher, plug. „A“
• Range: 100m
• Min. distance RF Touch element: 1m
• Working temperature: 0 to + 55°C
• Protection: IP30
• Work area: any
• Dimensions: 22 x 85 x 15mm
• Weight: 20g
