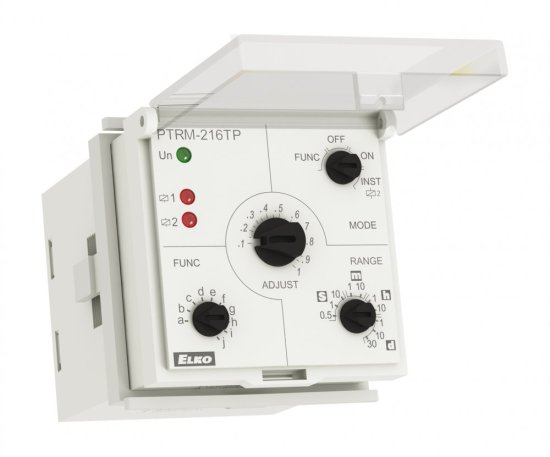

PTRM-216TP

Multifunction time relay

3D MODEL
Manufacturer: ELKO EP

Ord. code: 7938 standard
EAN: 8595188179386

Availability: In stock
Price excl. VAT £ 46,50
Your price: £ 55.80 incl. VAT
pcs
Quantity
Price excl. VAT
5-9 pcs
£ 44.18
10-24 pcs
£ 43.01
25-49 pcs
£ 41.85
50-99 pcs
£ 39.53
more than 99 pcs
£ 37.20

Description

PTRM-216TP | Multi Function Time Relay

  • Multi-function time relay for universal use in automation, control and regulation or in-house installations.
  • Possibility to select the control element for fine time setting:
    PTRM-216KP - knob, for easy handling without the need for tools
    PTRM-216TP - rotary switch, for the possibility of using a sealable cover
  • All functions initiated by the supply voltage, except for the flasher function, can use the control input to inhibit the delay (pause).
  • Relay mode selection - according to the set function, permanently closed, permanently open, and switching of the second relay according to the supply voltage.
  • Universal supply voltage AC/DC 12 – 240 V.
  • Time scale 50 ms - 30 days divided into 10 ranges: (50 ms - 0.5 s / 0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hr - 1 hrs / 1 hrs - 10 hrs / 0.1 days -1 day / 1 day - 10 days / 3 days - 30 days).
  • Output contact: 2x changeover / SPDT 16 A.
  • Multifunction red LED flashes or shines depending on the operating status.

More information

  • Voltage range: AC/DC 12 – 240V (AC 50 – 60Hz)
  • Maximum consumption: 2.5 VA / 1.5 W
  • Output contact: 2x changeover / SPDT 16 A (AgNi)
  • Functions available: 10
  • Mounting: 11 pin octal socket
  • LED indication: input - green, output - red
  • Protection degree: IP40 from front panel
  • Dimensions: 48 x 48 x 79 mm (1.7˝ x 1.7˝ x 3.1˝)
  • Weight: 107 g (3.77 oz)
