Multi-function time relay for universal use in automation, control and regulation or in house installations.
Potential-free control input (Control Switch Trigger).

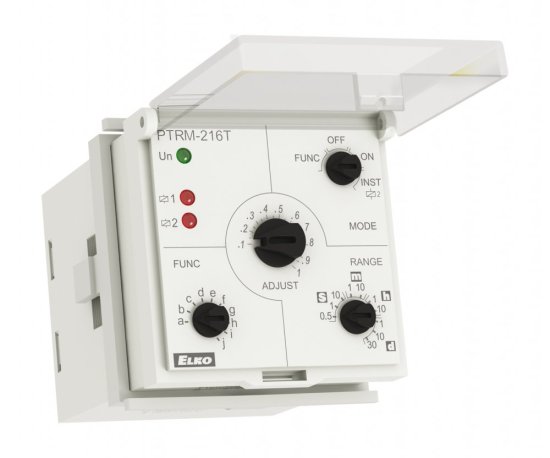

Possibility to select the control element for fine time setting: PTRM-216K - knob, for easy handling without the need for tools PTRM-216T - rotary switch, for the possibility of using a sealable cover
All functions initiated by the supply voltage, except for the flasher function, can use the control input to inhibit the delay (pause).
Relay mode selection - according to the set function, permanently closed, permanently open, and switching of the second relay according to the supply voltage.
Universal supply voltage AC/DC 12 – 240 V.
Time scale 50 ms - 30 days divided into 10 ranges: (50 ms - 0.5 s / 0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hr - 1 hrs / 1 hrs - 10 hrs / 0.1 days -1 day / 1 day - 10 days / 3 days - 30 days).
Output contact: 2x changeover / SPDT 16 A.
Multifunction red LED flashes or shines depending on the operating status.
