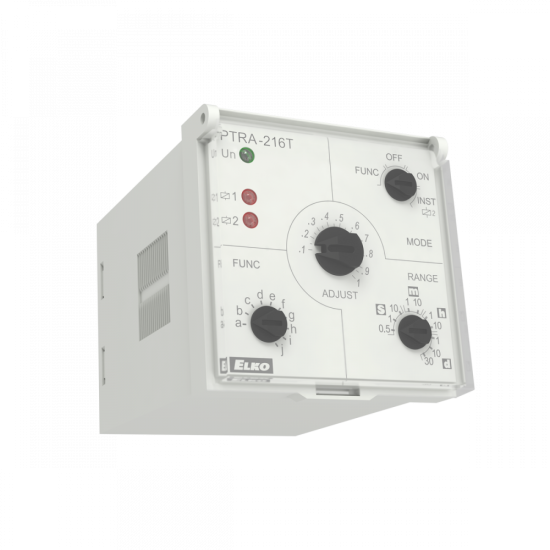

PTRA-216T | Multi Function Time Relay

• Multi-function time relay for universal use in automation, control and regulation or in house installations.
• Up to three control inputs - START, INHIBIT, RESET.
• Possibility to select the control element for fine time setting:
• PTRA-216K - knob, for easy handling without the need for tools
• PTRA-216T - rotary switch, for the possibility of using a sealable cover
• Relay mode selection - according to the set function, permanently closed, permanently open, and switching of the second relay according to the supply voltage.
• Universal supply voltage AC/DC 12 – 240 V.
• Time scale 50 ms - 30 days divided into 10 ranges: (50 ms - 0.5 s / 0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hr - 1 hrs / 1 hrs - 10 hrs / 0.1 days -1 day / 1 day - 10 days / 3 days - 30 days).
• Output contact: 2x changeover / SPDT 16 A.
• Multifunction red LED flashes or shines depending on the operating status.


Technical parameters

• Voltage range: AC/DC 12 – 240V (AC 50 – 60Hz)
• Maximum consumption: 2.5 VA / 1.5 W
• Output contact: 2x changeover / SPDT 16 A (AgNi)
• Functions available: 10
• Mounting: 11 pin octal socket
• LED indication: input - green, output - red
• Protection degree: IP40 from front panel
• Dimensions: 48 x 48 x 79 mm (1.7˝ x 1.7˝ x 3.1˝)
• Weight: 107 g (3.77 oz)
