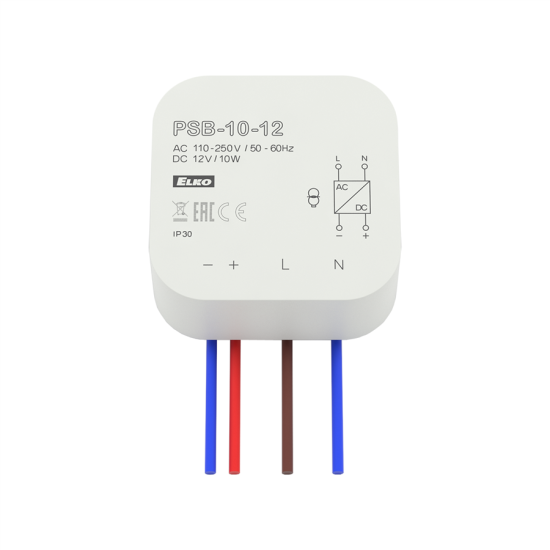

PSB-10 - Output voltage: 24 V DC
Description
PSB-10 | Power supplies
- switched stabilized power supplies with fixed output voltage, designed for mounting in an installation box (eg KU-68)
- stabilized power supply 12V/10W or 24V/10W
- Output current is limited by electronic fuse, in case maximal current is exceeded, the device switches off and after a short time interval it again switches on.
- Temperature protection - if the temperature is exceeded, the device switches off and after cooled down, it switches on again.
More information
- Supply voltage: AC 110 - 250V / 50-60Hz
- No-load power consumption (max): 3VA / 0.5W
- Power consumption under load (max): 26VA / 13W
- Output voltage DC / max. Current: 12V / 0.84A or 24V / 0.42A
- Output voltage tolerance: ± 2%
- Output indication: x
- Working humidity: 20 .. 90% RH
- Storage temperature: -40 .. +85°C
- Protection degree: IP 30
- Dimensions: 48 x 48 x 21mm
- Weight: 70g
Documents
Parameters
Design | BOX |
---|---|
Type of output voltage | DC |
Input voltage | 110 - 250 V AC |
