Description

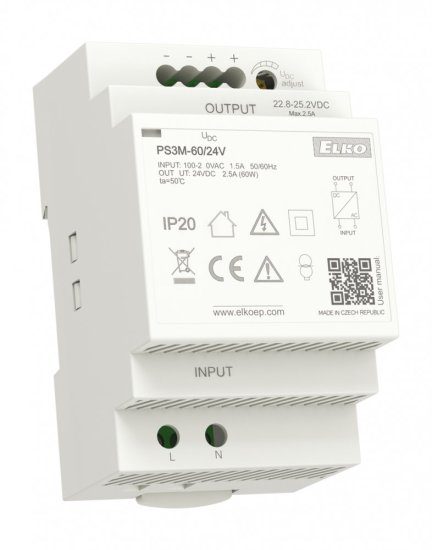

PS3M-60/24V | Power Supply

  • The PS3M series power supplies are stabilized with a nominal voltage of 12V or 24V DC.
  • PS3M-54/12V - stabilized power supply with fixed output voltage DC 12V / 54W
  • PS3M-60/24V - stabilized power supply with fixed output voltage DC 24V / 60W
  • Rated output voltage 12 or 24V DC with the possibility of regulation
  • High efficiency of up to 90%
  • Low ripple & noise
  • Wide voltage range input 100-240V AC
  • Protection: Overload, Overvoltage and Short circuit
  • LED indication of output voltage
  • Continuously adjustable output voltage to adapt to the specific application, e.g. the need to compensate for the voltage drop caused by the length of the line.

More information

  • Voltage range: AC 100 – 240 V (50 - 60 Hz)
  • The burden with a full load (max.): 70 W / 111 VA (PS3M-60/24V)
  • Electronic fuse against: short circuit, overload and overvoltage
  • Protection degree: IP20
  • Dimmension: 90 x 52,5 x 58 mm
  • Weight: 190 g

Documents

Parameters

Design 3-MODULES
Type of output voltage DC
Input voltage 100 - 240 V AC
Power 60 W
