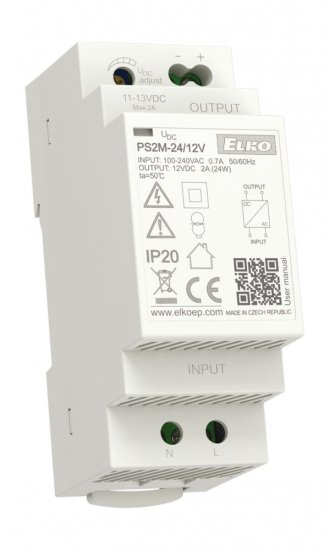

PS2M-24/12V | Power Supply

• The PS2M series power supplies are stabilized with a nominal voltage of 12V or 24V DC.
• PS2M-24/12V - stabilized power supply with fixed output voltage DC 12V / 24W
• PS2M-30/24V - stabilized power supply with fixed output voltage DC 24V / 30W
• Rated output voltage 12 or 24V DC with the possibility of regulation
• High efficiency of up to 90%
• Low ripple & noise
• Wide voltage range input 100-240V AC
• Protection: Overload, Overvoltage, and Short circuit
• LED indication of output voltage
• Continuously adjustable output voltage to adapt to the specific application, e.g. the need to compensate for the voltage drop caused by the length of the line.

More information

• Voltage range: AC 100 – 240 V (50 - 60 Hz)
• The burden with a full load (max.): 30 W / 50 VA (PS2M-24/12V)
• Electronic fuse against: short circuit, overload and overvoltage
• Protection degree: IP20
• Dimmension: 90 x 35 x 58 mm
• Weight: 120 g
