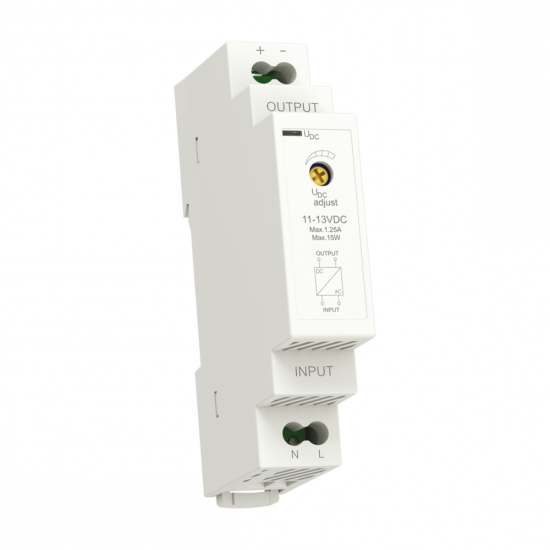

PS1M-15 - Output voltage: 12 V DC

Stabilized power supply 15 W

Manufacturer: ELKO EP

Ord. code: 8047 standard
EAN: 8595188180474

Availability: More than 10 pcs

Price excl. VAT £ 41,50

£ 49.80 incl. VAT

Variants 2

	Output voltage	Availability	Price excl. VAT	Quantity
	12 V DC	More than 10 pcs	£ 41.50
	24 V DC	More than 50 pcs	£ 23

PS1M -15 | Power Supply

The PS1M series power supplies are stabilized with a nominal voltage of 12V or 24V DC.
PS1M-15/12V - stabilized power supply with fixed output voltage DC 12V / 15W
PS1M-15/24V - stabilized power supply with fixed output voltage DC 24V / 15W
Rated output voltage 12 or 24V DC with the possibility of regulation
High efficiency of up to 90%
Low ripple & noise
Wide voltage range input 100-240V AC
Protection: Overload, Overvoltage and Short circuit
LED indication of output voltage
Continuously adjustable output voltage to adapt to the specific application, e.g. the need to compensate for the voltage drop caused by the length of the line.

More information:

Voltage range: AC 100 – 240 V (50 - 60 Hz)
Burden with full load (max.): 16 W / 30 VA (PS1M-15 /12V) or 17,5 W / 32 VA (PS1M-15 /24V)
Electronic fuse against: short circuit, overload and overvoltage
Protection degree: IP20
Dimmension: 90 x 18 x 58 mm
Weight: 78g
