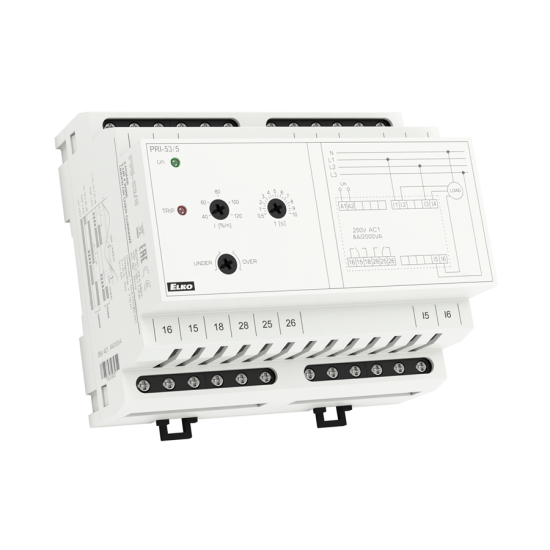

PRI-53 - Monitored current range: 3 x 2 - 6 A AC

The relay protects undercurrent / overcurrent

Protects the level of undercurrent or overcurrent in the range 0.4 - 1.2A AC or 2 - 6A AC
- 2x 8A switches

Manufacturer: ELKO EP

Ord. code: 4214 standard
EAN: 8595188142144

Availability: More than 5 pcs

Price excl. VAT £ 104,50

£ 125.40 incl. VAT

Variants 2

	Monitored current range	Availability	Price excl. VAT	Quantity
	3 x 0.4 - 1.2 A AC	In stock	£ 104.50
	3 x 2 - 6 A AC	More than 5 pcs	£ 104.50

PRI-53 | Three-phase relay

It is intended for protecting the current in three-phase devices (e.g. cranes, motors, etc.).
24 - 240V AC/DC power supply galvanically separated from the circuit of the monitored current.
Adjustable current level in % of In.
Fixed difference level.
Adjustable delay level (when exceeding the preset limit).
Adjustable function:
- UNDER - monitors the drop in the strength of current below the preset value (I).
- OVER - exceeding the preset value (I).
2 types depending on the strength of rated current In (1 A, 5A).
6-MODULE, DIN rail mounting.
Output relay with 2 switches contacts.
The option of connecting via the current transformers to increase the value of the monitored current by up to 600A

More information

Guarded values	> I (Overcurrent), <I (Undercurrent)
Power voltage	24 - 240 V AC/DC
Number of phases	3
Design	6-MODULES
