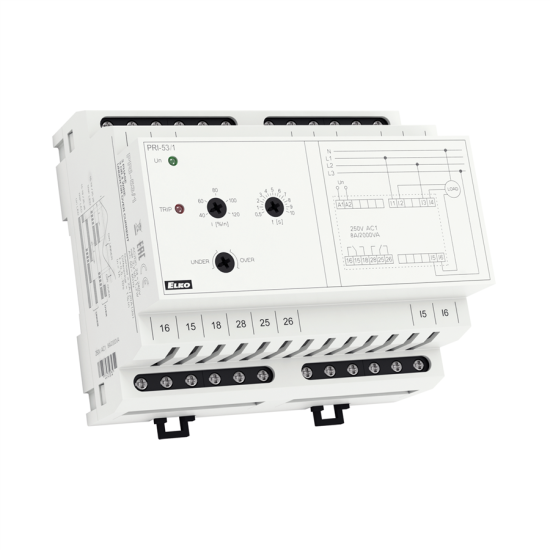

PRI-53 - Monitored current range: 3 x 0.4 - 1.2 A AC
PRI-53 - Monitored current range: 3 x 0.4 - 1.2 A AC
The relay protects undercurrent / overcurrent
Description
PRI-53 | Three-phase relay
- It is intended for protecting the current in three-phase devices (e.g. cranes, motors, etc.).
- 24 - 240V AC/DC power supply galvanically separated from the circuit of the monitored current.
- Adjustable current level in % of In.
- Fixed difference level.
- Adjustable delay level (when exceeding the preset limit).
- Adjustable function:
- UNDER - monitors the drop in the strength of current below the preset value (I).
- OVER - exceeding the preset value (I).
- 2 types depending on the strength of rated current In (1 A, 5A).
- 6-MODULE, DIN rail mounting.
- Output relay with 2 switches contacts.
- The option of connecting via the current transformers to increase the value of the monitored current by up to 600A
More information
- Supply terminals: A1, A2
- Supply voltage: 24 - 240V AC/DC
- Tolerance of voltage range: ± 10%
- Working frequency AC: 45 - 65Hz
- Power consumption (max): 3VA / 1.2W
- Output relay - contact: 2x switches / SPDT (AgNi) gilded
- Operating temperature: -20°C to 55°C
- Protection degree: IP40 from font panel / IP20 terminal
- Dimensions: 90 x 105 x 64mm
- Weight: 208g
Documents
Parameters
Guarded values | > I (Overcurrent), <I (Undercurrent) |
---|---|
Power voltage | 24 - 240 V AC/DC |
Number of phases | 3 |
Design | 6-MODULES |
