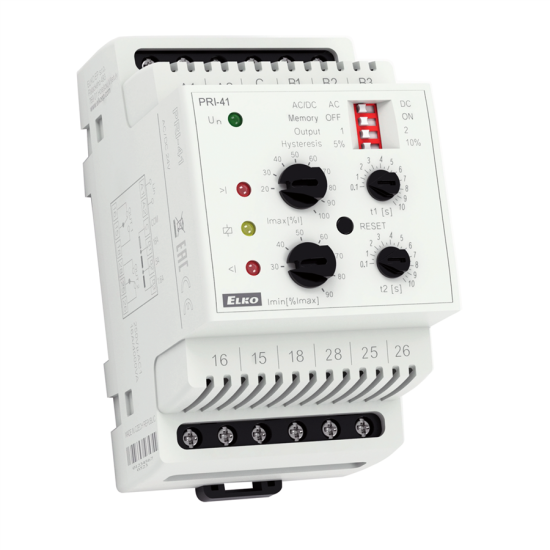

PRI-41

The relay protects DC and AC currents in 3 ranges, undercurrent / overcurrent

Protects the level of undercurrent and overcurrent in three ranges - (min./max.) 0.1 - 1.6A, 0.3 - 5A, 1 - 16A AC / DC

Manufacturer: ELKO EP

Ord. code: PRI-41

Price excl. VAT £ 82,50

£ 99 incl. VAT

Variants 2

	Power voltage	Availability	Price excl. VAT	Quantity
	24 V AC/DC	More than 5 pcs	£ 69.50
	230 V AC	More than 10 pcs	£ 82.50

PRI-41 | Protecting current relay

Used to protect overloading/discharge (machine, motor, etc.), check consumption, diagnostics on a remote device (burning, short circuit, increased current draw, etc.)
Relay designed for protecting DC and AC currents in three ranges
The relay controls the current size in two independent levels (I_max, I_min)
Setting the protected level I_max (in % of range)
Setting the protected level I_min
- (in % of range - for PRI-42 - function WINDOW)
- (in % of the set upper limit - for PRI-41 - function HYSTERESIS)
Adjustable function “MEMORY”
The function of the second relay (independently / in parallel)
The adjustable delay for eliminating short-term outages and surges for every level independently
Galvanically separated power supply from monitoring inputs
Output contact: 2x switches 16A / 250V AC1 for each current level
3-MODULE, DIN rail mounting

More information

Supply terminals: A1 - A2
Voltage range: AC 110V, AC 230V, AC 400V or AC / DC 24V (AC 50 - 60Hz)
Power consumption: 2.5W / 5VA (AC 110V, AC 230V, AC 400V), 1.4 W / 2VA (AC / DC 24V)
Operating range: -15%; +10%
Number of contacts: 2x switches (AgNi)
Operating temperature: -20.. +55°C
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP40 from front panel / IP20 terminals
Dimensions: 90 x 52 x 65mm
Weight: 153g

Guarded values	> I (Overcurrent), <I (Undercurrent)
Number of phases	1
Design	3-MODULES
Monitored current range	1.6 A AC/DC, 5 A AC/DC, 16 A AC/DC
