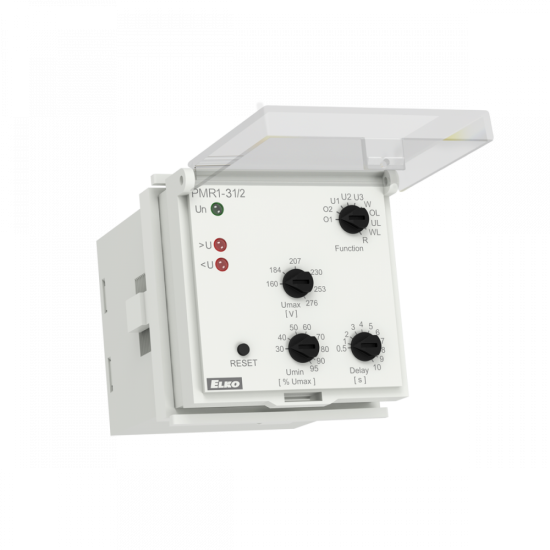

PMR1-31/2 | Multifunction voltage monitoring relay

• It is used to monitor the value of alternating or direct voltage in 1-phase circuits.
• Supply voltage from monitored voltage.
• Monitors voltage exceeding the upper voltage level (Umax) and falling below the lower voltage level (Umin) – according to the selected function.
• Smooth adjustment of both voltage levels – the lower level Umin is set in % of the upper-level Umax.
• Adjustable time delay (to eliminate short-term voltage drops and peaks).
• Option to select functions with fault state memory (Latch).
• The fault state memory can be reset with a button on the panel (RESET).
• Measures true root mean square value of the voltage - TRUE RMS.

 Other parameters

• Overvoltage: Yes
• Undervoltage: Yes
• Monitored range: AC/DC 48 - 276 V
• Output contact: 2x CO, 16 A
• Housing: 8-PIN into socket
• Power supply: from monitored voltage
• Dimensions: 48 × 48 × 79 mm (1.89˝ × 1.89˝ × 3.11˝)
