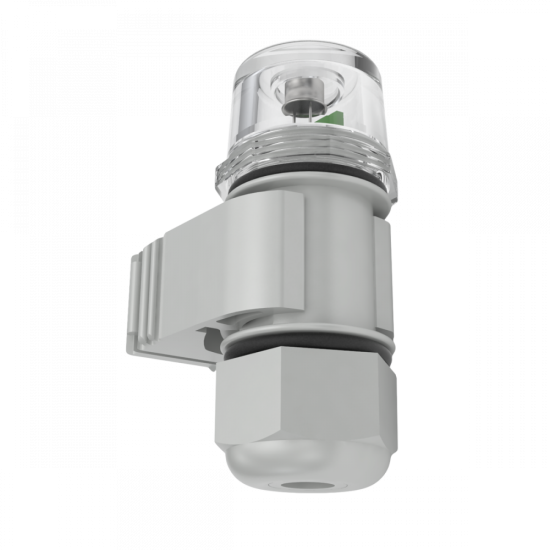

SKS-200 | Photosensor for SOU-2

• The sensor is installable to panel (by the screw-able transparent cover) to opening with a diameter of 16 mm (0.6˝)
• A part of the sensor is a plastic holder for placing on the wall or in another place.
• The protection degree is IP65.

Technical parameters

• Protection degree: IP 65
• Terminal block: push-in terminals
• Operating temperature: -30 to +70 °C (-22 to 158 °F)
• Storage temperature: -30 to +70 °C (-22 to 158 °F)
• Cable size:
  • solid: 0.2 to 0.75 mm2 (32 - 21 AWG)
  • stranded + cable end: 0.25 to 0.34 mm2 (30-28 AWG)
• Diameter of connecting cable: max. 6.5 mm (0.3˝)
• Sensor cable length: max. 50 m (164")
• Dimensions: 58 x 24 mm (2 x 0.9˝)
