Memory (impulse) switches controlled by buttons for switching lighting from several places are a practical replacement for AC (No. 6) and cross (No. 7) switches
Latching relays, controlled by buttons from several locations can replace three-way switches or crossbar switches thanks to controlling by buttons (unlimited number, connected in parallel by 2 wires), the installation becomes easier and faster for mounting.
Relays MR-41/UNI, MR-42/UNI memorize its last state even after supply failure. During the failure, the relay will turn off and after re-energizing will automatically turn on.

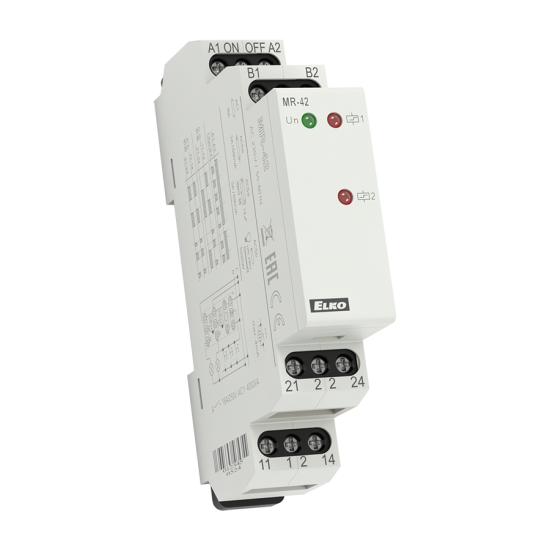

MR-42
options - 2x parallel contacts or the other relay is latching
the function selected via external jumper between B1 - B2
output contact: 2x switch 16A
More information
Number of functions: 2
Supply terminals: A1 - A2
Voltage range: AC 230V or AC/DC 12 - 240V (AC 50 - 60Hz)
Burden: AC 0.17 - 12VA / DC 0.11 - 1.9W
Supply voltage tolerance: -15%; +10%
Supply indication: green LED
Number of contacts: 2x switch/ DPDT (AgSnO2)
Rated current: 16A / AC1
Operating temperature: 20°C to +55°C
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP40 from front panel / IP20 terminals
