Power voltage Availability Price excl. VAT Quantity
MR-41 12-240 V AC/DC (UNI) More than 100 pcs £ 23.97

Description

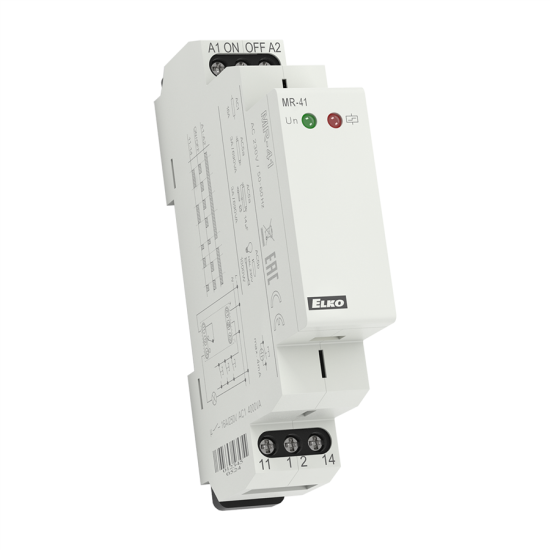

MR-41 | Memory relay

  • Memory (impulse) switches controlled by buttons for switching lighting from several places are a practical replacement for AC (No. 6) and cross (No. 7) switches
  • Latching relays, controlled by buttons from several locations can replace three-way switches or crossbar switches thanks to controlling by buttons (unlimited number, connected in parallel by 2 wires), the installation gets easier and faster for mounting.
  • Relays MR-41/UNI, MR-42/UNI memorize its last state even after supply failure. During the failure, the relay will turn off and after re-energizing will automatically turn on.
  • output contact: 1x switch 16A

More information

  • Power terminals: A1 - A2
  • Voltage range: AC/DC 12 - 240V or AC 230V (AC 50 - 60Hz)
  • Power consumption (apparent / lossy): AC max. 12VA / 1.2W
  • Supply voltage tolerance: -15%; +10%
  • Supply indication: green LED
  • Number of contacts: 1x switch / SPDT (AgSnO2)
  • Switching power: 4000VA / AC1, 384W / DC
  • Output indication: red LED
  • Control pulse length: min. 25 ms / max unlimited
  • Operating temperature: -20°C to +55°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel / IP20 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 62g

Documents

Parameters

Power voltage 12-240 V AC/DC (UNI), 230 V AC
Design 1-MODULE
Output contact 1 x changeover 16 A
