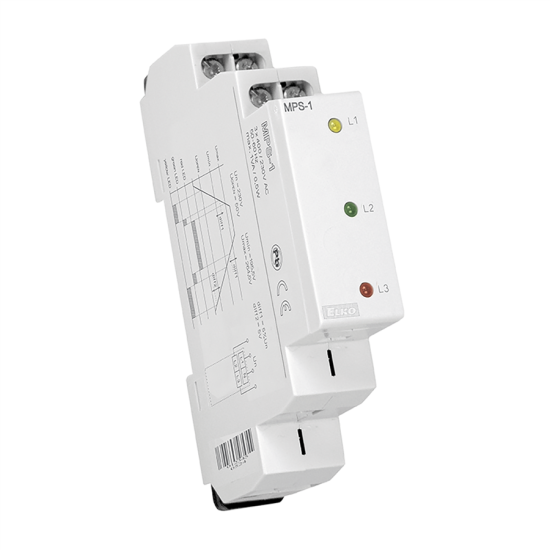

MPS-1 | Optical signaling of three-phase main

• Used for optical signaling of the voltage level in three phases.
• Each phase features LED signaling, broken down by color into voltage levels:

  • voltage intolerance of ± 15 % - green
  • overvoltage - red
  • undervoltage - yellow
• voltage < 50 V - LED not illuminated.
• Four-wire connection - L1, L2, L3, N.
• Monitors phase voltages against the neutral wire.
• Not dependent upon the order of phases.
• In 1-MODULE design, DIN rail mounting.

More information

• Supply voltage: AC 3x 400/230 V / 50 - 60Hz
• Supply voltage tolerance: +20 %, -75 %
• Power consumption: max. 1.0VA / 0.5W
• Design: 1 MODULE
• Mounting: DIN rail EN60715
• Operating position: any
• Coverage: panel IP40, terminals IP10
• Cross-section of connecting wires (mm2): max. 2x 2.5, max. 1x 4 / with sleeve max. 1x 2.5, 2x 1.5
• Working temperature: -20°C to 55°C
• Dimensions: 90 x 17.6 x 64mm
• Weight: 58g
