Description

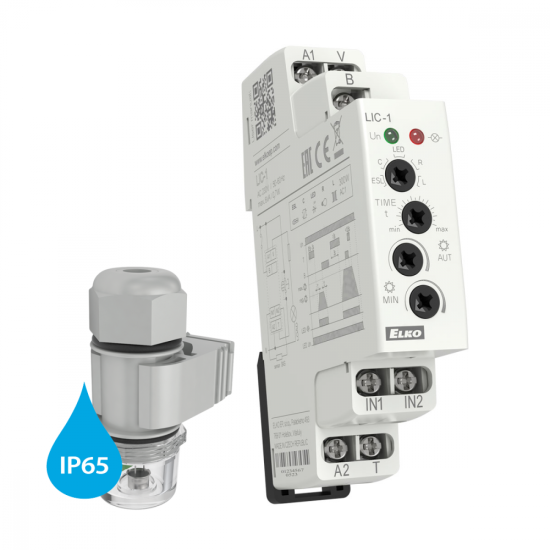

LIC-1 | Lighting intensity controller

  • Designed for dimming of incandescent bulbs and halogen lights with wound or electronic transformer, dimmable light bulbs, and dimmable LED.
  • Automatically regulates the intensity of light in a room.
  • External sensor scans the intensity and based on the preset value it decreases or increases the brightness of a light.
  • Operating status:

1 - Off.

2 - Automatic regulation.

3 - Cleaning (maximum level of illumination).

4 - Setting the minimum lighting brightness.

5 - Setting the desired level of illumination.

  • Optional connection of buttons with 50 neon lamps.
  • Blocking the automatic control via external signal.
  • Power supply 230V AC.
  • 1-MODULE, DIN rail mounting, clamping terminals.
  • The intensity control automatically controls the lighting in the room based on the incoming light. It is especially suitable for restaurants, offices, corridors.

More information

  • Supply terminals: A1 - A2
  • Supply voltage tolerance: ± 15%
  • Apparent / lossy power consumption: max. 1.6VA / 0.8W
  • Power supply indication: green LED
  • Operating temperature: -20°C to +35°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Ingress protection: IP40 from front panel / IP10 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 66g

Documents

Parameters

Type of dimmable load R - resistive, L - inductive, C - capacitive, ESL - energy saving lamps, LED
Design 1-MODULE
