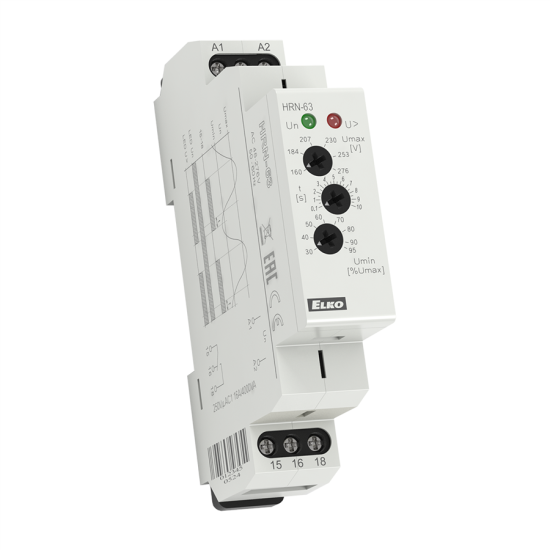

HRN-63

The relay protects overvoltage / undervoltage in the range AC 48 - 276V

It protects the level of undervoltage and overvoltage in the range of 48 - 276V AC; fnc. HYSTERESIS

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 3062 standard
EAN: 8595188130622

Availability: In stock
Price excl. VAT £ 34,50
Your price: £ 41.40 incl. VAT
pcs
Quantity
Price excl. VAT
5-9 pcs
£ 32.78
10-24 pcs
£ 31.91
25-49 pcs
£ 31.05
50-99 pcs
£ 29.33
more than 99 pcs
£ 27.60

Description

HRN-63 | Voltage monitoring relay

  • serves to monitor the supply voltage for appliances prone to supply tolerance, protection of equipment against undervoltage / overvoltage ...
  • difference between HRN-3x and HRN-6x series - see graph function
  • HRN-33, HRN-63
    • monitors voltage in the range AC 48 - 276V
    • it is possible to monitor the level by overvoltage and undervoltage separately
  • HRN-34, HRN-64
    • as HRN-33, but with a level range of monitored voltage DC 6 - 30V
    • this range is predestined for monitoring battery circuits (24V)
  • HRN-35
    • like HRN-33, but independent output relays for each voltage level
    • it is thus possible, for example, to switch a load other than for undervoltage with the output for overvoltage
  • HRN-37, HRN-67
    • like HRN-33, monitors the voltage in range AC 24 -150V
    • it is possible to monitor the level of overvoltage and undervoltage independently
  • An adjustable time delay for all types is 0 - 10s (to eliminate short voltage drops or peaks).
  • the lower voltage level (Umin) is set in% of the upper level (Umax)
  • 3-state indication - LEDs indicating normal state and 2 fault states.
  • the device is powered from the monitored voltage (measures the level of its own power supply)
  • single-phase design, 1-MODULE, DIN rail mounting

More information

  • Terminals: A1 - A2
  • Voltage range: AC 48 - 276V / 50-60Hz
  • Number of contacts: 1x switch/ SPDT (AgNi / Silver Alloy)
  • Operating temperature: -20°C to 55°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from the front panel, IP20 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 61g
