The relay monitors undervoltage, sequence and phase failure
Description

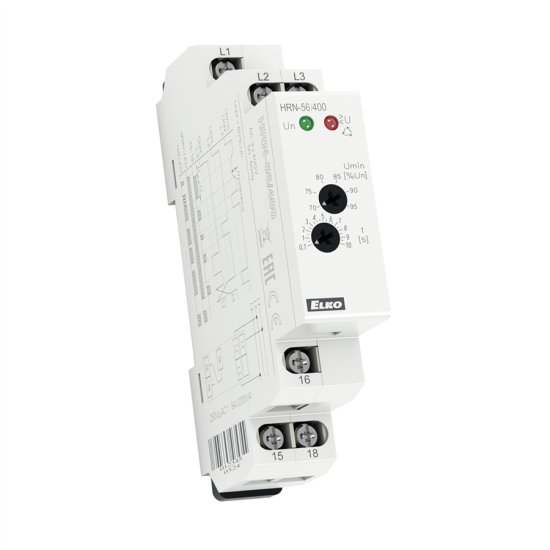

HRN-56 | Relay for monitoring phase sequence and failure
- Relay monitors phase sequence and failure (e.g. control of correct motor winding etc.).
- Relay is designated for the monitoring of 3-phase networks.
- Supply from all phases which means that relay is functional also in case of one phase failure.
- Fixed time delay T1 (500 ms) and adjustable time delay T2 (0 -10s).
- The faulty state is indicated by LED and by the opening of output relay contact.
- Output contact 1x switch 8 A / 250 V AC1
- 1-MODULE, 3-MODULE, DIN rail mounting.
More information
- Monitoring terminals: L1, L2, L3
- Supply / measured voltage: 3x 480V L-L (3x277V L-N) 50-60Hz
- Max. continuous voltage: AC 3x 160V
- Number of contacts: 1x switch (AgNi)
- Operating temperature: -20°C to +55°C
- Operating position: any
- Mounting: DIN rail EN 60715
- Protection degree: IP40 from front panel / IP20 terminals
- Dimensions: 90 x 52 x 65mm
- Weight: 66g
Documents
Parameters
Guarded values | <U (Undervoltage), Phase failure, Phases sequence |
---|---|
Power voltage | from monitored voltage |
Number of phases | 3 |
Design | 1-MODULE, 3-MODULES |
Monitored voltage range | 3 x 72 - 160 V AC, 3 x 125 - 276 V AC, 3 x 144 - 276 V AC, 3 x 228 - 550 V AC, 3 x 240 - 460 V AC, 3 x 345 - 660 V AC |
