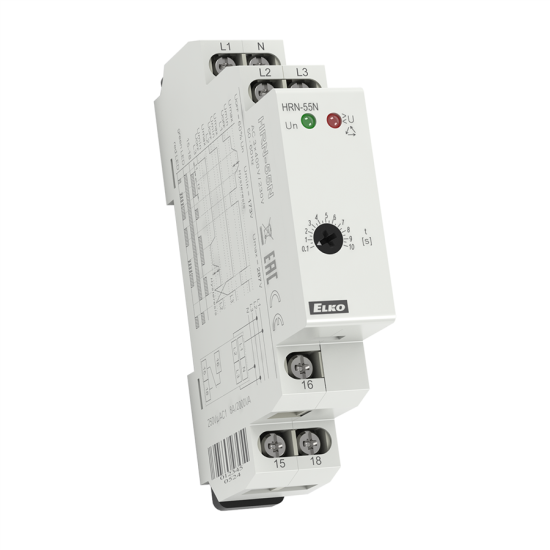

HRN-55N

The relay protects the sequence and phase failure

It protects the failure/sequence of phases and voltages in fixed values (undervoltage) 300, (overvoltage) 500V AC

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 7513 standard
EAN: 8595188137232

Availability: More than 200 pcs
Original price £ 26.40 -25%
Price excl. VAT £ 19,80
Your price: £ 19.80 excl. VAT
pcs

Description

 HRN-55N | Relay for protecting phase sequence and failure

  • replacement for HRN-51 and HRN-51N
  • the relay controls the sequence and phase failures (e.g. checking the correct rotation of motors, drives, etc.)
  • relay designed for monitoring 3-phase networks
  • HRN-55N - supply L1-N, it means that relay also monitors for a break of the neutral point.
  • Fixed delay T1 (500ms) and adjustable delay T2 (0.1 - 10s).
  • The faulty state is indicated by LED and the output contact of relay is OFF.
  • Output contact: 1x switch / SPDT 16 A / 250 V AC1.
  • 1-MODULE, DIN rail mounting

                More information

                • Monitoring terminals: L1, L2, L3, N
                • Supply and monitored voltage Un: 3x 400V / 230V / 50-60Hz
                • Number of contacts: 1x switch (AgNi)
                • Operating temperature: -20°C to 55°C (-4°F to 131°F)
                • Operating position: any
                • Mounting: IP40 from front panel / IP10 terminals
                • Dimensions: 90 x 17.6 x 64mm (3.5 x 0.7 x 2.5˝)
                • Weight: 66g (2.3oz.)
