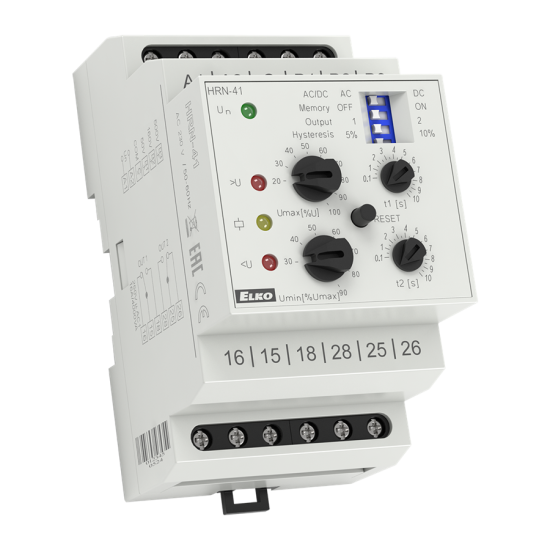

HRN-41 - Power voltage: 400 V AC

The relay protects overvoltage / undervoltage of AC and DC in three ranges

It protects the level of undervoltage and overvoltage in three ranges: (min./max.) 3 - 50V, 10 - 160V, 30 - 500V AC / DC; 2x 16A switches

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 4722 standard
EAN: 8595188140423

Availability: More than 10 pcs
Price excl. VAT £ 82,50
Your price: £ 82.50 excl. VAT
Specify product selection
Variant does not exist

Description

HRN-41 | Protecting voltage relay

  • Relay designed for protecting DC and AC voltage in 3 ranges
  • The relay controls the size of the voltage at two independent levels (Umin, Umax).
  • Setting the protected level Umax (in % of range.)Setting protected level Umin
    • (in % of range - for HRN-42 -function WINDOW),
    • (in % of the set upper limit - for HRN-41 - function HYSTERESIS).
  • Adjustable function “MEMORY”.
  • The function of the second relay (independently / in parallel).
  • The adjustable delay for eliminating short-term outages and surges for every level independently.
  • Galvanically separated power supply from monitoring inputs.
  • Output contact 2x switches 16A / 250V AC1 for each monitored voltage level.
  • In 3-MODULE design, fixing to DIN rail.

More information

  • Supply terminals: A1 - A2
  • Voltage range: AC 110V, AC 230V, AC 400V or AC/DC 24V (AC 50-60Hz)
  • Supply voltage tolerance: -15%; +10%
  • Number of contacts: 2x switches / SPDT (AgNi / Silver Alloy)
  • Operating temperature: -20°C to +55°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel / IP20 terminals
  • Dimensions: 90 x 52 x 65mm
  • Weight: 246g
