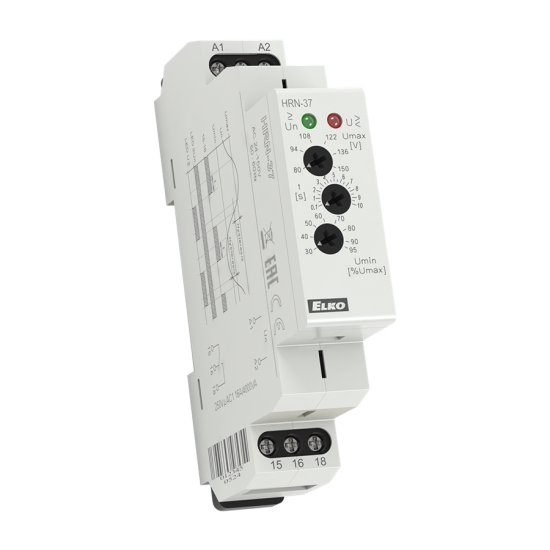

HRN-37

The relay protects overvoltage / undervoltage in the range AC 24 - 150V

It protectss the level of undervoltage and overvoltage in the range 24 - 150V AC; fnc. WINDOW

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 3061 standard
EAN: 8595188130615

Availability: More than 50 pcs
Price excl. VAT £ 31,00
Your price: £ 31 excl. VAT

Description

HRN-37 | Protecting voltage relay

  • It serves to control supply voltage for appliances sensitive to supply tolerance, protection of the device against under/over voltage.
  • For the difference between HRN-3x and HRN-6x - see a graph of the function.
  • HRN-33, HRN-63
    • monitors voltage in range AC 48 - 276V
    • it is possible to protect the level by overvoltage and undervoltage separately
  • HRN-34, HRN-64
    • like HRN-33, but voltage range is DC 6 - 30V
    • monitoring of battery circuits (24V)
  • HRN-35
    • like HRN-33, but independent output relays for each voltage level
    • it is possible, for example, to switch a different load than for undervoltage by the output for overvoltage
  • HRN-37, HRN-67
    • monitors the voltage in range AC 24 -150V
    • it is possible to monitor the level of overvoltage and undervoltage independently
  • An adjustable time delay for all types is 0 - 10s (to eliminate short voltage drops or peaks).
  • the lower voltage level (Umin) is set in % of the upper level (Umax)
  • 3-state indication - LEDs indicating normal state and 2 fault states.
  • the device is powered from the monitored voltage (measures the level of its own power supply)
  • single-phase design,1-MODULE, DIN rail mounting.

More information

  • Terminals: A1 - A2
  • Voltage range: AC 24-150V / 50-60Hz
  • Number of contacts: 1x switch/ SPDT (AgNi / Silver Alloy)
  • Operating temperature: -20°C to 55°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel, IP20 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 61g
