HRN-100
Description

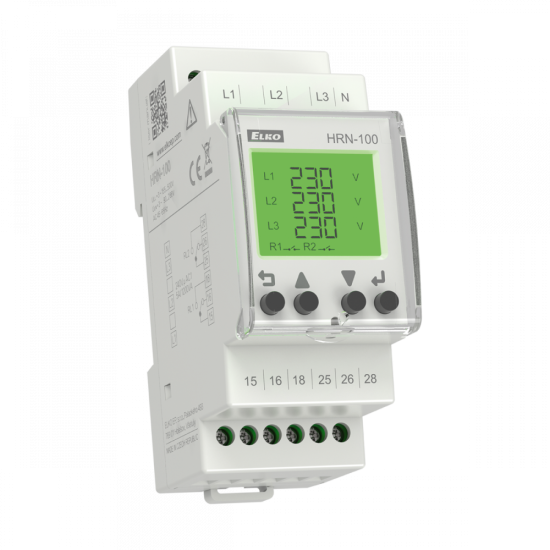

HRN-100 | Multifunction voltage monitoring relay in 3P with LCD display
- 3-wire or 4-wire connection (with or without neutral).
- Optionally monitors high and low voltage & frequency in 3-phase circuits.
- Allows monitoring of failure, sequence, and phase asymmetry incl. neutral failure (only for 4-wire connection).
- The product is powered by a monitored voltage.
- Both output contacts can be set individually.
- Measures the true RMS value of True RMS.
- Optional setting of output contact response delay and measured error condition incl. Possibility of delayed response of the output contact after power supply connection.
- Possibility of manual or automatic (default setting) transition from error state (memory).
- Optional closing or opening of the output contact when measuring an error condition (Fail Safe/Non Fail Safe).
- Password protection against unauthorized changes to settings.
- Digital backlit display with the ability to monitor the current state of the network incl. possible failures.
- The last five error states are stored in a backed-up history that is possible to view
- Sealable transparent cover for display and controls.
More information
- Supply and monitored voltage: ULL = 3 ~ 155-500 V; ULN = 3 ~ 90-288 V (45-65 Hz)
- Burden: max. 5 VA
- Output contact: 2x changeover, 5A (AgSnO2)
- Output indication: on display, icon R1 and R2
- Mounting: DIN rail EN 60715
- Protection degree: IP20 cover and terminals / IP40 from front panel
- Dimensions: 90 x 36 x 66.5 mm
- Weight: 132 g
Documents
Parameters
Guarded values | > U (Overvoltage), <U (Undervoltage), > Frequency, < Frequency, Phase failure, Phases sequence, Phases asymmetry |
---|---|
Power voltage | from monitored voltage |
Number of phases | 3 |
Design | 2-MODULES |
Monitored voltage range | 3 x 90 - 288 V AC, 3 x 155 - 500 V AC |
