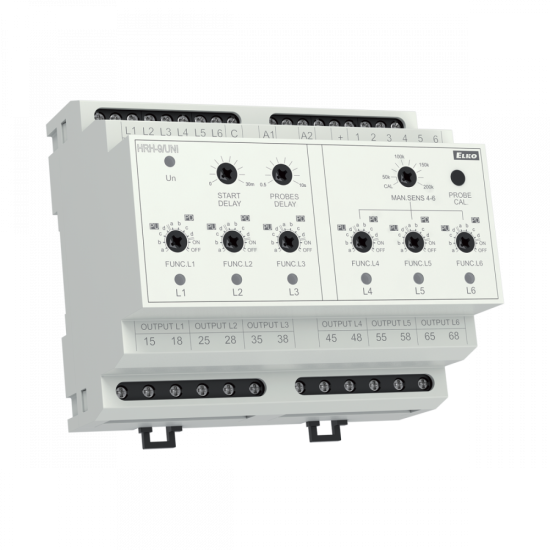

HRH-9 | Six-level level switch - universal

• The relay is designed to control the level of conductive liquids in wells, sumps, tanks, pools, tankers, reservoirs ...
• Galvanically separated power and monitoring circuits
• Possibility to connect up to 6 level probes (+ one common probe)
• Each probe has its own output relay function selection for each probe separately
• Adjustable delay after power on (START Delay)
• Adjustable relay closing delay (Probe Delay) - common for all probes
• Automatic calibration of the sensitivity of the probes according to the conductivity of the monitored liquid
• For probes 4, 5, 6 possibility of manual sensitivity adjustment
• A monitoring frequency of 10 Hz prevents polarization of the liquid and increases the resistance to mains frequency interference

Technical parameters

• Supply terminals: A1 - A2
• Supply voltage: AC/DC 24 to 240V (AC 50/60Hz)
• Power indication: green LED
• Number of contacts: 6x switching (AgSnO2)
• Mounting: DIN rail EN 60715
• Protection degree: IP40 from front panel/IP20 terminals
• Dimensions: 90 x 105 x 65mm (3.5˝ x 4.1˝ x 2.6˝)
• Weight: 252 g (8.9 oz.)
