HRH-8 - Power voltage: 230 V AC

Level switch - ADVANCED

Level switch with up to eight functions - can be connected for 2x monitoring of one level; 1x monitoring of two levels or pumping from one tank to another

3D MODEL

Manufacturer: ELKO EP

Ord. code: 5542 standard
EAN: 8595188155427

On request

Original price £ 69.50 -30%

Price excl. VAT £ 48,65

£ 58.38 incl. VAT

Variants 2

	Power voltage	Availability	Price excl. VAT	Quantity
	24 V AC/DC	On request	£ 50.40
	230 V AC	On request	£ 48.65

Description

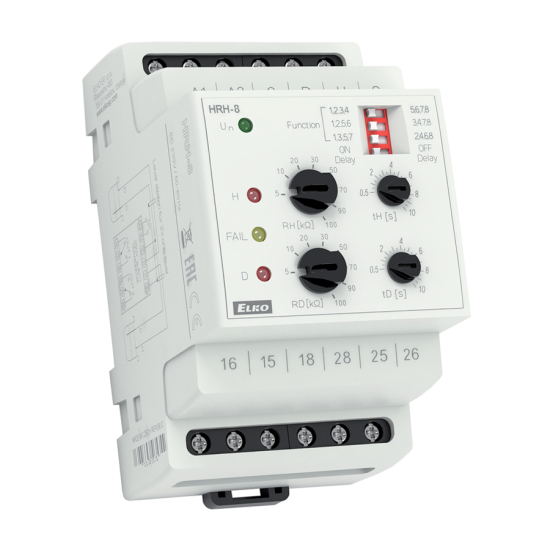

HRH-8 | Level switch - ADVANCED

Relay is designed to control the level of conductive liquids in wells, tanks, pools, tankers, reservoirs... (replacement HRH-1)
Galvanically isolated supply and guard circuits
Within one device, the following configurations can be selected:
- 2x one-level monitoring (in separate tanks)
- 1x two-level monitoring (in one tank)
- Pumping from one tank to another
DIP switch selection on the front panel (8 functions)
Adjustable probe sensitivity (for each probe separately)
Adjustable relay switching delay (for each probe separately
10Hz watch frequency prevents polarization of the liquid and increases resistance to interference by network frequency
2x output relay (with changeover contact 16A / 250V AC1)
3-MODULE design, mounting onto DIN rail.

Documents

Parameters

Power voltage	24 V AC/DC, 230 V AC
Design	3-MODULES
Output contact	2 x changeover 16 A
