Description

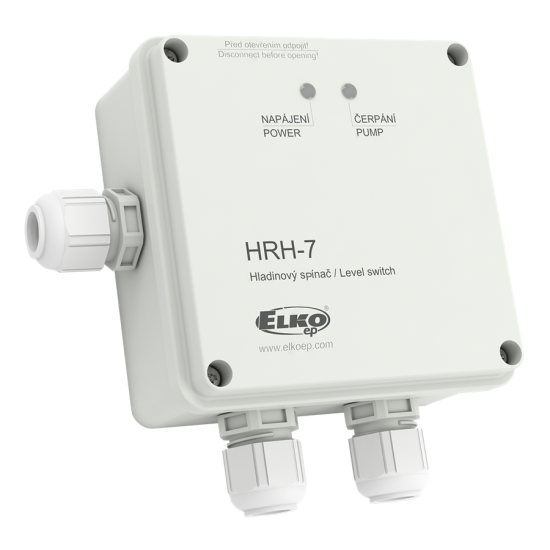

HRH-7 | Level switch

  • Suitable to operate/work in harsh conditions due to the high degree of protection IP65
  • The switch monitors the level changes in wells, reservoirs, tanks, etc.
  • It is possible to select the following configurations:
    • one-level switch of conductive liquids monitors one level (by connecting H and D)
    • two-level switch of conductive liquids monitors two levels (switches on at one level and switched off at another level)
  • Choice of function PUMP-UP or PUMP-DOWN
  • Adjustable time delay of output (0.5 - 10s)
  • Adjustable sensitivity using a potentiometer
  • Measuring frequency 10 Hz prevents liquid polarization and increased oxidation of measuring probes
  • Measuring circuits are galvanically separated from the power source of the product and circuits of the relay contact by enhanced insulation according to EN 60664-1 for overvoltage category III.
  • Output contact: 1x switch / DPDT 16A / 250V AC1

More information

  • Function: 2
  • Supply voltage: 24.. 240V AC / DC (AC 50 - 60Hz)
  • Burden: max. 2 VA
  • Supply voltage tolerance: -15%; +10%
  • Max. prefix value. fuse: 16A
  • Number of contacts: 1x switch / DPDT (AgSnO2)
  • Operating temperature: -20°C to 55°C
  • Operating position: any
  • Protection: IP65
  • Dimension: 114 x 114 x 56mm
  • Weight: 234g
