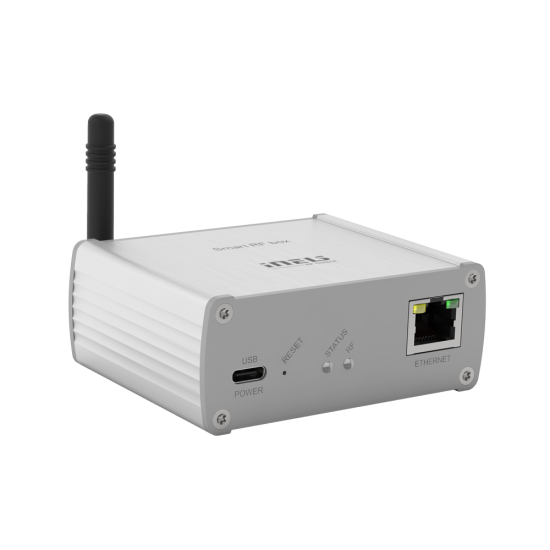

The Smart RF Box is a gateway between iNELS RF elements and applications for smartphones, tablets, watches, televisions, voice assistants (Google Home & Alexa) and other third-party devices.
It is produced in two versions: a) eLAN-RF-103: LAN communication b) eLAN-RF-Wi-103: LAN communication with WiFi in AP (Access Point) mode with direct connection of the smartphone to eLAN-RFWi- 103 or in Client mode (connection to the home WiFi network by connecting the smartphone via home wireless router).
It communicates from up to 70 iNELS RF elements, processes set programs for automatic control.
Thanks to two-way communication, it displays the current status of individual elements.
Powered by 5 V DC / 2A adapter, USB-C connector (included).
Configuration is done via the iHC application.
The package includes an internal antenna AN-I, in case the Smart RF box is located in a metal switchboard, you can use the external antenna AN-E for better signal reception. For the eLAN-RF-Wi-103 version, a WiFi antenna is included in the package
More information
Communication protocol: RFIO, RFIO2
Indications RF communications: 1x green RF LED
Supply voltage / current: 5V DC / 0.5A
Power source: 110 - 230 V AC / 5 V DC - 2A (connector USB-C)
