Description

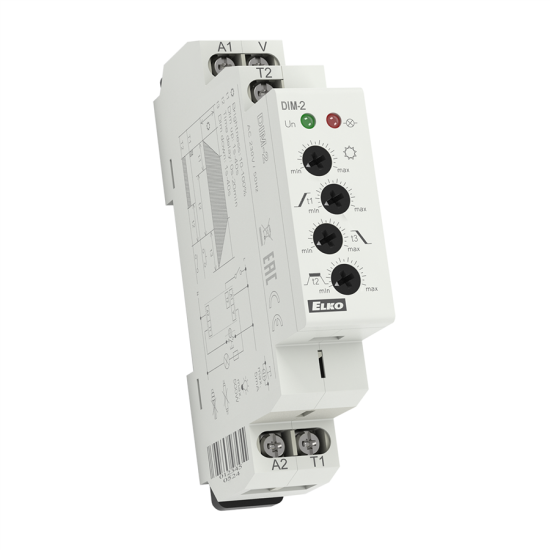

DIM-2 1h | Staircase switch with dimming

  • Designated for dimming bulbs, halogen lights and halogen lights with winding transformers and Dimmable LED.
  • Intelligent control of halogen lights, function of gradual switching on and dimming.
  • Controlling inputs for push button and switch.
  • values are set by potentiometers on the front panel of the product, you can set:
    • the brightness at which the luminaire should light up
    • speed (smoothness) of the onset of lighting
    • speed (fluency) of dim-down
    • time for which light is on with maximum dim-up.
  • Output without contact: 1x triac
  • Clamp terminals.
  • A parallel connection of controlling pushbuttons is possible.
  • Protection against over-temperature inside the product - switches output off + signalizes overheating by LED flashing.
  • Note: the possibility of start and finish adjustment up on 1 hour, the device has description DIM-2 1h.
  • 1-MODULE, DIN rail mounting
  • The stair dimmer gradually switches on the light continuously, then lights up for the set time and finally goes out gradually. It is mostly used as lighting in apartment buildings and their entrances or corridors.

More information

  • Supply terminals: A1 - A2
  • Voltage range: AC 230V / 50Hz
  • Power consumption: max. 5VA
  • Time setting by: potentiometers
  • Operating temperature: 20°C to +55°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Time intervals:
    • Start-up: 1 hour
    • Course: 20 min
    • Deceleration: 1 hour
  • Protection degree: IP40 from front panel / IP10 terminals
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 65g
