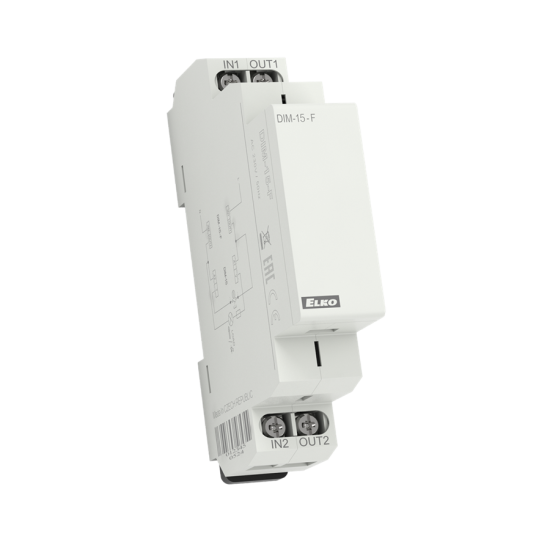

DIM-15-F | DIM-15 dimmer filter

• DIM-15-F serves for limitation of emissions from dimmer into feeding supply
• The filter is a part of dimmer DIM-15 and can not be operated separately
• Supply voltage 230V AC
• 1-MODULE version, DIN-rail mounting, saddle terminals

Technical parameters

• Supply terminals: IN1, IN2
• Supply voltage: AC 230V / 50Hz
• Output terminals: OUT1, OUT2
• Operating temperature: -20.. +35°C
• Operating position: any
• Mounting: DIN list/rail EN 60715
• Protection degree: IP40 from the front panel, IP10 terminals
• Dimensions: 90x17.6x64mm
• Weight: 88g
