Description

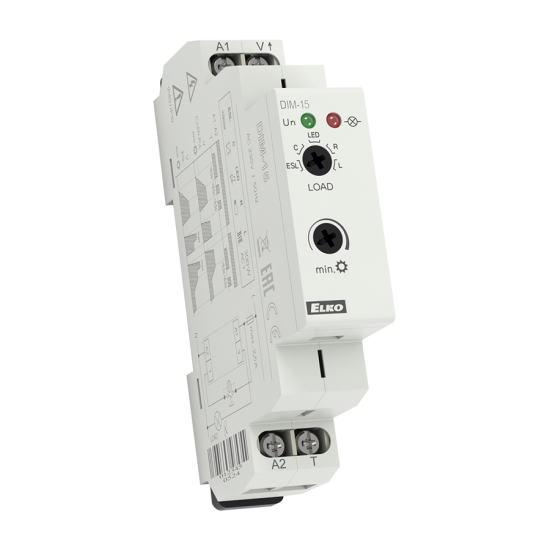

DIM-15 | Universal dimmer

  • Universal dimmer with load adjustment (R, L, C, ESL, LED) brings the possibility of dimming 90% of dimmable light sources on the market
  • Designed for dimming of incandescent bulbs and halogen lights with wound or electronic transformer, dimmable light bulbs and dimmable LED
  • Allows continuous adjustment of light intensity with the button or buttons in parallel
  • When switched off, the set brightness level is stored in memory and when switched on again, the brightness is already set to this value
  • The type of light source is set by a switch on the instrument panel
  • Setting the minimum brightness with the potentiometer on the instrument panel eliminates the flickering of different types of energy-saving bulbs
  • Output status is indicated by a red LED
    • - illuminates when the output is active (with any brightness level)
    • - flashes while heating overload, at the same time output, is disconnected.
  • 1-MODULE version, DIN rail mounting, saddle terminals.

More information

  • Supply terminals: A1 - A2
  • Operating range: AC 230V / 50Hz
  • Apparent power: -15%; +10%
  • Power indication: green LED
  • Operating temperature: 20°C to +35°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Protection: IP40 from the front panel / IP10 terminal
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 57g

Documents

Parameters

Type of dimmable load R - resistive, L - inductive, C - capacitive, ESL - energy saving lamps, LED
Design 1-MODULE
