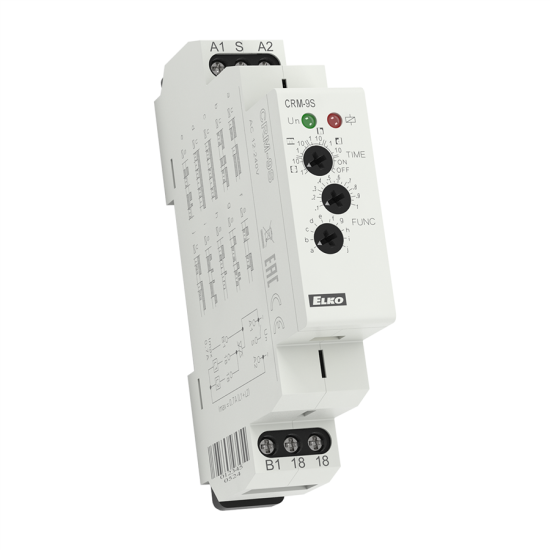

CRM-9S/UNI
Description
CRM-9S | Multifunction Time Relay
- Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage, 16 A or 3x 8 A contacts)
- 10 functions:
- 5 time functions controlled by supply voltage
- 4 time functions controlled by control input
- 1 function by latching relay
- Comfortable and well-arranged function and time-range setting by rotary switches
- Time scale 0.1 s - 10 days divided into 10 ranges: (0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1hrs - 1h / 1h - 10hrs / 0.1 day - 1 day / 1 day - 10 days / only ON / only OFF)
- CRM-9S:
- universal supply voltage AC 12 - 240V AC 12 - 240V, absolutely noise-less switching
- 1x static contactless output (triac) 0.7A (60A / < 10ms), switches potential A1
- Multifunction red LED output indicator flashes or shines depending on the status of the output
More information
- Number of functions: 10
- Supply terminals: A1 - A2
- Supply voltage tolerance: -15%; +10%
- Supply indication: green LED
- Time setting: rotary switch and potentiometer
- Operating temperature: -20°C to +55°C (-4°F to 131°F)
- Operating position: any
- Mounting: DIN rail EN 60715
- Protection degree: IP40 from front panel / IP20 terminals
- Dimensions: 90 x 17.6 x 64mm
- Weight: 51g
Documents
Parameters
Time range | 0.1 - 1 s, 1 - 10 s, 6 - 60 s, 1 - 10 min, 6 - 60 min, 1 - 10 h, 0.1 - 1 day, 1 - 10 days |
---|---|
Functions | ZR - delayed start, ZN - delayed return, Delayed return after pulse off, Symmetrical cycler starting with a space, Symmetrical cycler starting with an impulse, Staircase automat, Impulse shift, Memory (pulse) relay, Pulse generator |
Power voltage | 12-240 V AC |
Settings | Rotary switches |
Design | 1-MODULE |
