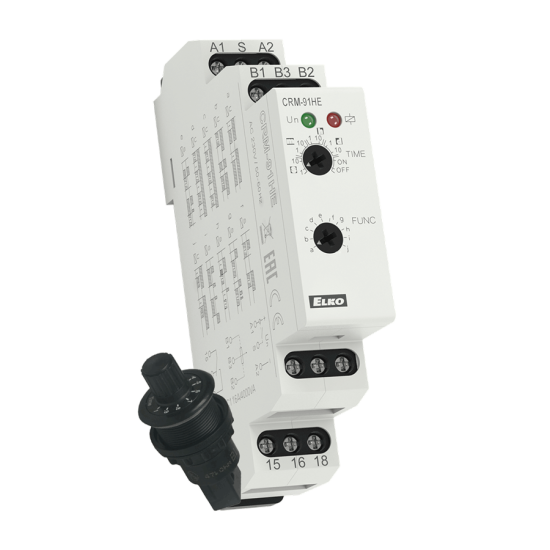

CRM-91HE/UNI + 1x potentiometer
Description
COST-EFFICIENT BUNDLE OF MULTIFUNCTION RELAY CRM-91HE AND 1PC EXTERNAL POTENTIOMETER
CRM-91HE | Time relay with an external potentiometer
- Time relay for universal use in automation, control, regulation, or house installations.
- Thanks to the most used functions and a wide time range, it allows you to use it in every application.
- It is used in electrical appliances, where it is necessary to change the state using precise timing, to control lighting, heating or the control of motors, pumps, machines, equipment, fans, ventilators, etc.
- Control by external control unit - potentiometer (can be placed/mounted for example on switchboard doors or in panels).
- 10 functions :
- 5 time functions controlled by supply voltage
- 4 time functions controlled by control input
- 1 function of latching relay - time scale 0.1s - 10 days divided into 10 ranges (0.1s - 1s / s - 10s / 0.1min - 1min / 1min - 10min / 0.1hrs - 1h / 1h - 10hrs / 0.1 day - 1 day / 1 day - 10 days / only ON / only OFF).
- Possibility to connect external potentiometer - max. distance 10m (32.8 ft.) from relay CRM-91HE, CRM-2HE
More information
- Number of functions: 10
- Supply terminals: A1 - A2
- Supply voltage tolerance: -15%; +10%
- Supply indication: green LED
- Operating temperature: 20°C to +55°C
- Operating position: any
- Mounting: DIN rail EN 60715
- Protection degree: IP40 from front panel / IP20 terminals
- Dimensions: 90 x 17.6 x 64mm
- Weight: 77g
Documents
Parameters
Time range | 0.1 - 1 s, 1 - 10 s, 6 - 60 s, 1 - 10 min, 6 - 60 min, 1 - 10 h, 0.1 - 1 day, 1 - 10 days |
---|---|
Functions | ZR - delayed start, ZN - delayed return, Delayed return after pulse off, Symmetrical cycler starting with a space, Symmetrical cycler starting with an impulse, Staircase automat, Impulse shift, Memory (pulse) relay, Pulse generator |
Power voltage | 12-240 V AC/DC (UNI) |
Settings | Rotary switches, External potentiometer |
Design | 1-MODULE |
Output contact | 1 x changeover 16 A |
