CRM-91H - Power voltage: 12-240 V AC/DC (UNI)

Multifunction time relay

10 functions; time 0.1s - 10 days; 1x16A switch

Manufacturer: ELKO EP

Ord. code: 7521 standard
EAN: 8595188112420

Availability: More than 200 pcs

TOP

Price excl. VAT £ 32,00

£ 38.40 incl. VAT

Variants 2

	Power voltage	Availability	Price excl. VAT	Quantity
	12-240 V AC/DC (UNI)	More than 200 pcs	£ 32
	230 V AC	More than 100 pcs	£ 38.50

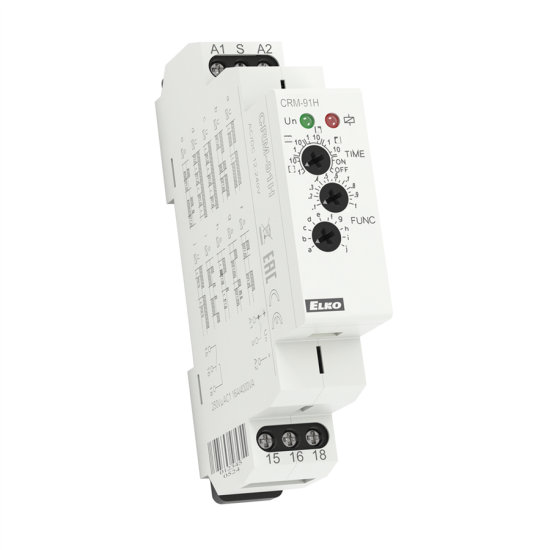

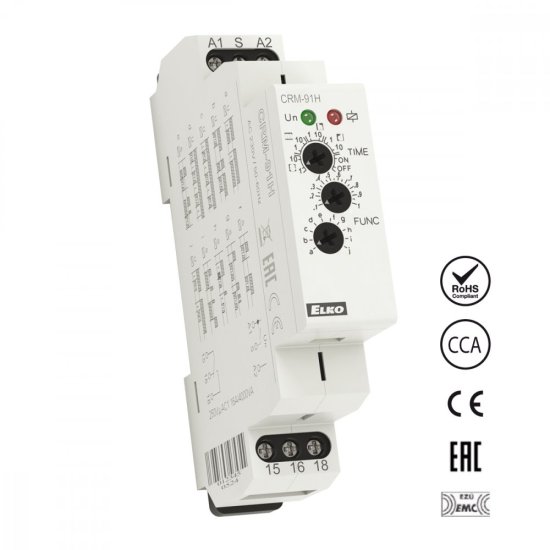

CRM-91H | Multifunction time relay

multifunctional time relay for universal use in automation, control and regulation or in house installations
thanks to its numerous features (10 functions, 10-time ranges, 16A or 3x 8A contact) it covers all the requirements that can be placed on a time relay
10 functions:
- - 5-time functions controlled by the supply voltage
- - 4-time functions controlled by control input
- - 1 function of latching relay
Comfortable and well-arranged function and time-range setting by rotary switches
Time scale 0.1 s - 10 days divided into 10 ranges: (0.1s - 1s / 1s - 10s / 0.1min - 1min / 1min - 10min / 0.1hrs - 1h / 1h - 10 hrs / 0.1 day - 1 day / 1 day - 10 days / only ON / only OFF)

More information

Time range	0.1 - 1 s, 1 - 10 s, 6 - 60 s, 1 - 10 min, 6 - 60 min, 1 - 10 h, 0.1 - 1 day, 1 - 10 days
Functions	ZR - delayed start, ZN - delayed return, Delayed return after pulse off, Symmetrical cycler starting with a space, Symmetrical cycler starting with an impulse, Staircase automat, Impulse shift, Memory (pulse) relay, Pulse generator
Settings	Rotary switches
Design	1-MODULE
Output contact	1 x changeover 16 A
