Description

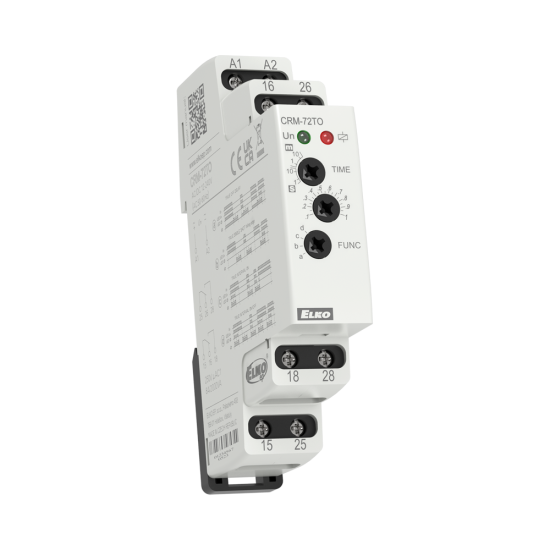

CRM-72TO | Multifunction true off delay time relay

  • The relay keeps timing according to the set function even after the power supply is disconnected.
  • It can be used for delayed switching off of a backup power supply and systems in case of power failure (e.g. emergency lighting, emergency ventilation, electrically and automatically operated doors – lifts, escalators).
  • Comfortable and well-arranged time delay (t) setting by rotary switch.
  • The adjustable time delay from 0.1 s to 10 m is split into four ranges: (0.1 s – 1 s / 1 s – 10 s / 0.1 m – 1 m / 1 m – 10 m)
  • Power supply outages must be in the order of tens to hundreds of milliseconds.
  • Multifunction red LED flashes or shines depending on the operating state.

 Others information

  • Output: 2x changeover, 8 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC/DC 12-240 V (AC 50/60 Hz)
  • Time range: 0.1s - 10 min (4 ranges)
  • Number of functions: 4
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
