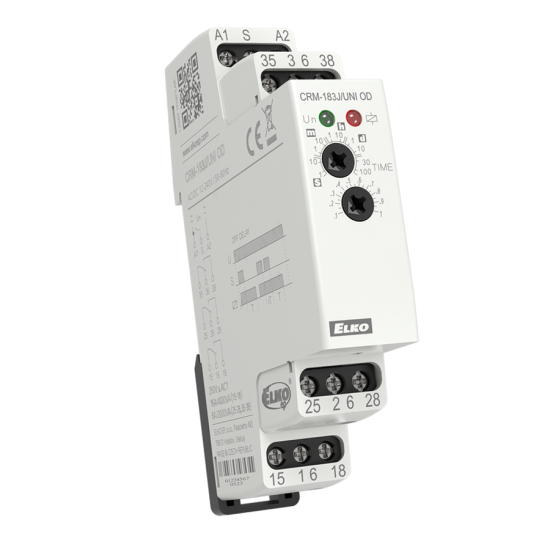

CRM-183J/UNI | Single Function Time Relay

• Single-function time relays are suitable for applications where there is a clear function requirement in advance and are suitable for universal use in automation, control and regulation or in house installations.

• Choice of four types: ZR, ZN, BL, OD
• All functions initiated by the supply voltage can use the control input to inhibit the ongoing delay (pause).
• Universal supply voltage AC/DC 12 - 240 V.
• Time scale 0.1 s - 100 hrs divided into 10 ranges: (0.1 s - 1 s / 1 s - 10 s / 3 s - 30 s / 6 s - 60 s / 1 min - 10 min / 3 min - 30 min / 6 min - 60 min / 1 h - 10 hrs / 3 hrs - 30 hrs / 10 hrs - 100 hrs).
• Output contact:
  CRM-181J: 1x changeover / SPDT 16 A
  CRM-183J: 1x changeover / SPDT 16 A, 2x changeover / DPDT 8 A
• Multifunction red LED flashes or shines depending on the operating status.

More information

• LED indication: input - green, output - red
• Maximum consumption: 2.5 VA / 1.5 W
• Mounting: DIN rail EN 60715
• Protection degree: IP40 from front panel / IP20 terminals
• Dimensions: 90 x 17.6 x 64 mm (3.5 x 0.7 x 2.5 inch)
• Weight: 84 g (3 oz)
