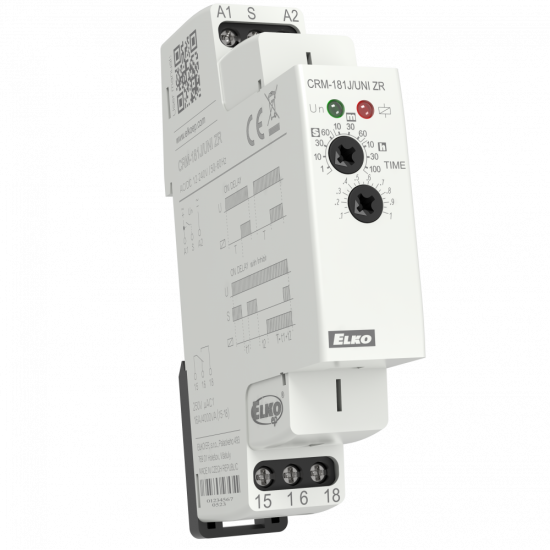

CRM-181J - Functions: ZR - delayed start

Single function time relay

Single function; time range 0.1 s - 100 hours; 1x16A changeover

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: 8038 standard
EAN: 8595188180382

Availability: More than 100 pcs
Price excl. VAT £ 26,25
Your price: £ 26.25 excl. VAT
Specify product selection
Variant does not exist

Description

CRM-181J/UNI | Single Function Time Relay

  • Single-function time relays are suitable for applications where there is a clear function requirement in advance and are suitable for universal use in automation, control and regulation, or in house installations.
  • Choice of four types: ZR, ZN, BL, OD
  • All functions initiated by the supply voltage can use the control input to inhibit the ongoing delay (pause).
  • Universal supply voltage AC/DC 12 - 240 V.
  • Time scale 0.1 s - 100 hrs divided into 10 ranges: (0.1 s - 1 s / 1 s - 10 s / 3 s - 30 s / 6 s - 60 s / 1 min - 10 min / 3 min - 30 min / 6 min - 60 min / 1 h - 10 hrs / 3 hrs - 30 hrs / 10 hrs - 100 hrs).
  • Output contact:
    CRM-181J: 1x changeover / SPDT 16 A
    CRM-183J: 1x changeover / SPDT 16 A, 2x changeover / DPDT 8 A
  • Multifunction red LED flashes or shines depending on the operating status.

More information

  • LED indication: input - green, output - red
  • Maximum consumption: 2 VA / 1.5 W
  • Mounting: DIN rail EN 60715
  • Protection degree: IP40 from front panel / IP20 terminals
  • Dimensions: 90 x 17.6 x 64 mm (3.5 x 0.7 x 2.5 inch)
  • Weight: 61 g (2.2 oz)
