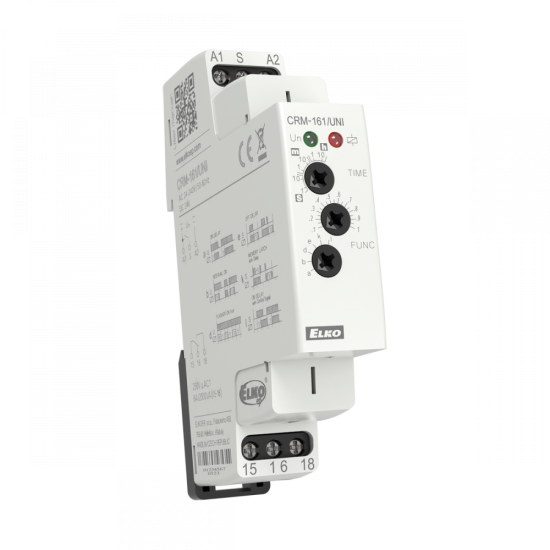

CRM-161
Description
Multifunction Time Relay | CRM-161
- Multi-function time relay for universal use in automation, control and regulation or in-house installations.
- Universal supply voltage: AC 24 – 240 V (AC 50-60 Hz) and DC 24V
- Comfortable and well-arranged function and time-range set by rotary switches.
- Time scale 0.1 s - 10 hrs divided into 6 ranges: (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 h - 10 hrs)
- Output contact: 1x changeover / SPDT 8 A
- Multifunction red LED flashes or shines depending on the operating status.
More information:
- Voltage range: AC 24 - 240 V (AC 50 - 60 Hz) and DC 24 V
- Power input (max.): 2 VA / 1.5 W
- Number of contacts: 1x changeover / SPDT 8 A (AgNi)
- Mounting: DIN rail EN 60715
- Protection degree: IP40 from front panel / IP20 terminals
- Dimensions: 90 x 17.6 x 64 mm (3.5 x 0.7 x 2.5 inch)
- Weight: 62 g (2.2 oz)
Documents
Parameters
Time range | 0.1 - 1 s, 1 - 10 s, 6 - 60 s, 1 - 10 min, 6 - 60 min, 1 - 10 h |
---|---|
Functions | ZR - delayed start, ZN - delayed return, Delayed return after pulse off, Symmetrical cycler starting with an impulse, Delayed start when the control contact closes, Impulse relay with delay |
Power voltage | 24 V DC, 24 - 240 V AC |
Settings | Rotary switches |
Design | 1-MODULE |
Output contact | 1 x changeover 8 A |
