Description

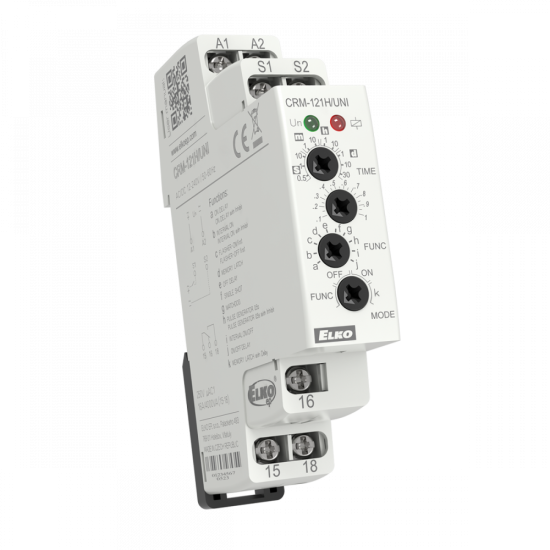

CRM-121H/UNI | Multifunction time relay with galvanically separated control input

  • Multifunction time relay for universal use in automation, control, and regulation or in-house installations.
  • Galvanically separated control input (Power Trigger)
  • All functions initiated by the supply voltage, except for the flasher function, can use the control input to inhibit the delay (pause).
  • Mode selection - according to the set function, permanently closed, permanently open, function of MEMORY LATCH with delay.
  • Time scale 50 ms - 30 days divided into 10 ranges.
  • Multifunction red LED flashes or shines depending on the operating status.

More information

  • Voltage range: AC/DC 12 - 240 V (AC 50 - 60 Hz)
  • Maximum consumption: 2 VA / 1.5W
  • Output contact: 1x changeover / SPDT 16A (AgNi)
  • Functions available: 11
  • Mounting: DIN rail EN 60715
  • LED indication: power supply - green, output - red
  • Protection degree: IP40 from front panel / IP10 terminals
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
  • Weight: 72 g (2.5 oz)
