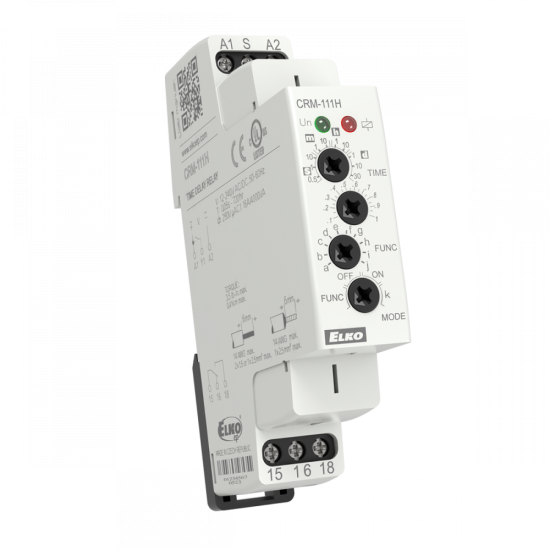

Multi-function time relay for universal use in automation, control and regulation or in house installations.
All functions initiated by the supply voltage, except for the flasher function, can use the control input to inhibit the delay (pause). • Relay mode selection - according to the set function, permanently closed, permanently open, function of memory latch with delay (CRM-111H) / switching of the second relay according to supply voltage (CRM-113H).
Universal supply voltage AC/DC 12 – 240 V.
Time scale 50 ms - 30 days divided into 10 ranges: (50 ms - 0.5 s / 0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hr - 1 hrs / 1 hrs - 10 hrs / 0.1 days - 1 day / 1 day - 10 days / 3 days - 30 days).
Output contact:
CRM-111H: 1x changeover / SPDT 16 A
CRM-113H: 1x changeover / SPDT 16 A, 2x changeover / DPDT 8 A
Multifunction red LED fl ashes or shines depending on the operating status.
More information
LED indication: input - green, output - red
Maximum consumption: 2 VA / 1.5 W
Mounting: DIN rail EN 60715
Protection degree: IP40 from front panel / IP20 terminals
Dimensions: 90 x 17.6 x 64 mm (3.5 x 0.7 x 2.5 inch)
