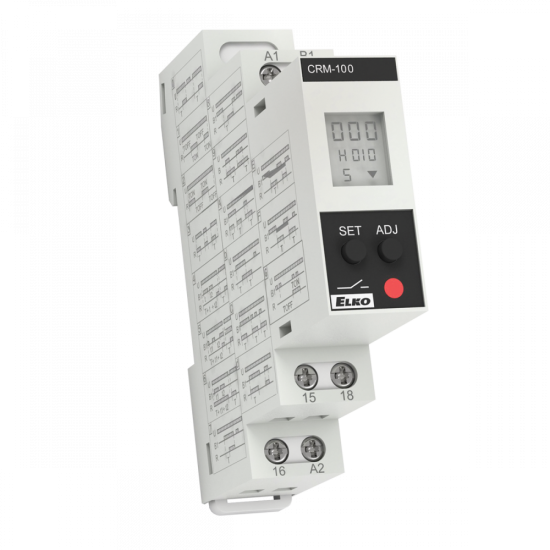

CRM-100 | Digital multifunction time relay

• Digital multifunction relay can be used for controlling lights, heating, motors, pumps, machines and appliances where you need to set time functions.
• 17 most used functions - 4-time functions controlled by the supply voltage - 13-time functions controlled by the control contact
• Thanks to the digital display and settings you can set exactly the time required (without any mechanical tolerance).
• Time range 0.1 s - 999 hours
• Universal power supply 24-240 V AC/DC allows you to vary the power.
• 1x 8 A changeover contact.
• Clear display of the time function on the display.
• 1-MODULE, DIN rail mounting.

More information

• Number of functions: 17
• Supply terminals:  A1 - A2
• Voltage range: AC/DC 24-240 V (50-60 Hz)
• Number of contacts: 1x C/O / SPDT (AgNi)
• Operating temperature: 14 .. 131 °F (-10 .. +55 °C )
• Operating position: any
• Mounting: DIN rail EN 60715
• Protection degree: IP30 from front panel / IP20 terminals
• Dimensions: 85 x 18.2 x 76 mm (3.3˝ x 0.7˝ x 2.99˝)
• Weight: 85 g (2.99 oz.)
