Bistable relays are used mainly for remote lighting control from multiple places, switching of electric drives, heating ...
The advantage of these devices is noiseless switching and almost zero consumption energy in a closed state (in stand-by position the consumption is zero).
Designed from 16A - 32A ensures trouble-free LED switching lamps with surge currents up to 80A (BR-232-20).
In a conventional lighting control installation, a large amount of cables is used but for bistable relays for signal control, only 2 wires are used.
As a result, the bistable relay provides savings during installation (cable consumption, installation time ...)

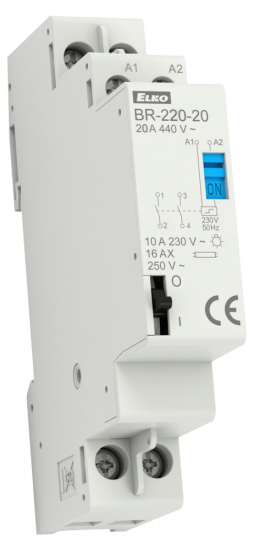

Manual control for BR-220-20 and BR-232-20.
Technical parameters
Remote control: Yes
Number of modules: 1
Number of poles: 2
Degree of protection: IP20
Overload current withstand capability: 10s: 56A
Rated operating current for AC-1, AC-7a and AC-21: 20A
