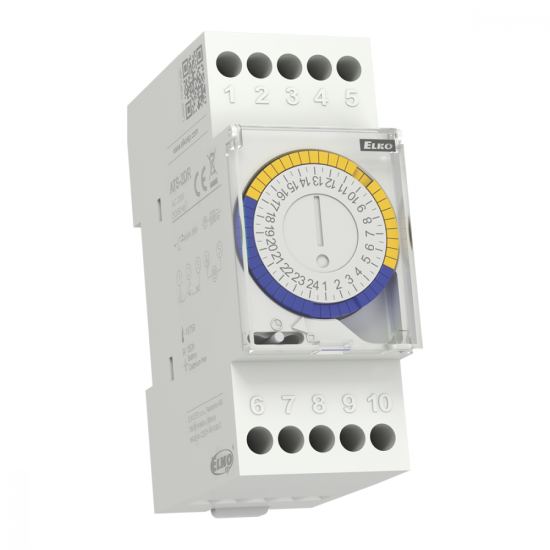

ATS-2DR
Description
ATS-2DR Analog time switches with a daily program
- The mechanical time switch is a simple and inexpensive alternative to digital time switches for controlling heating, ventilation, cooling, lighting systems, or pumps depending on real-time.
- Daily program.
- Selection of operating modes using a switch on the panel:
- switches automatically according to the set program.
- permanently closes
- permanently opens
- Power reserve after power off for up to 150 hours after fully charged.
- Sealable transparent front panel cover.
Technical parameters
- Supply voltage: AC 230V (50/60 Hz)
- Power consumption: 1W (1,5 VA)
- Program: daily
- Min. operating switching time: 30 min
- Power reserve: max 150 hrs
- Number of contacts: 1x changeover (AgNi)
- Mounting: DIN rail EN 60715
- Protection degree: IP20
- Dimensions: 90 x 35 x 60 mm (3,5˝ x 1.4˝ x 2.4˝)
- Weight: 117 g (4,1 oz.)
